1.3 Inch 240X240 IPS LCD Display Module with Square Viewing Area and Dual Interface Options

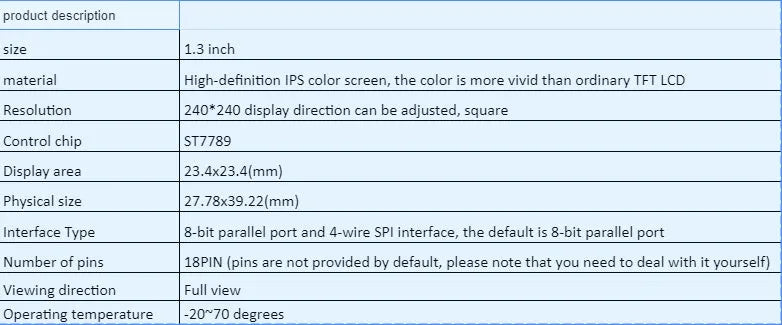

This compact 1.3-inch display module delivers full-colour visual output through its high-definition IPS screen technology, designed specifically for integration into embedded systems and DIY electronics projects. With a square 240x240 pixel resolution and a viewable area measuring 23.4x23.4mm, it provides clear, readable information display while maintaining minimal space requirements. The module operates across a wide temperature range from -20°C to 70°C, making it suitable for various environmental conditions. Its 18-pin interface offers flexibility with both 8-bit parallel and 4-wire SPI communication protocols, though users should note that connection pins must be sourced separately.

Features and Construction

Built around the ST7789 display controller, this module combines reliable performance with practical design elements suited to electronic prototyping and product development. The physical dimensions of 27.78x39.22mm allow for straightforward mounting in enclosures or on prototyping boards, while the IPS screen technology provides enhanced colour reproduction compared to traditional TFT LCD displays.

Material and Build

The core component is a high-definition IPS colour screen that offers improved colour vibrancy and viewing characteristics. This screen technology typically provides better colour accuracy and wider viewing angles than standard TFT LCD alternatives, though actual performance depends on implementation and driving circuitry. The display direction can be adjusted through software configuration, offering flexibility in how content appears on the square display surface.

Size and Practical Fit

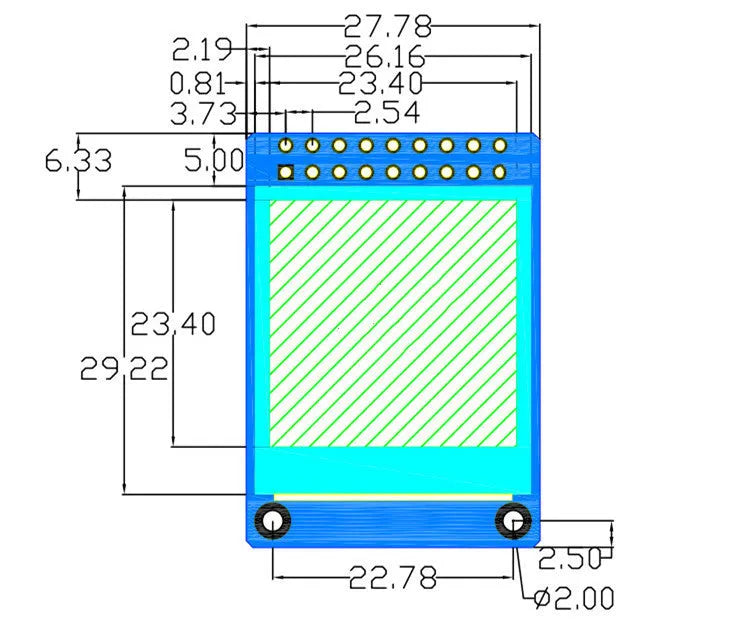

With a compact 1.3-inch diagonal measurement and physical dimensions of 27.78x39.22mm, this display module fits comfortably in space-constrained applications. The square 23.4x23.4mm viewable area makes efficient use of the available surface, providing ample space for displaying text, graphics, or sensor data. The 18-pin interface is arranged to facilitate connection to common microcontroller development boards, though users must provide their own pins for physical connection.

Uses and Placement

This display module serves as a visual output component for various electronic systems, from hobbyist projects to professional embedded applications. Its combination of compact size, colour capability, and interface flexibility makes it adaptable to different requirements and skill levels.

Event or Professional Use

In professional settings, this display can function as part of instrumentation panels, control system interfaces, or monitoring equipment where compact colour display is required. The operating temperature range of -20°C to 70°C allows deployment in environments beyond typical indoor conditions. The ST7789 controller provides a stable platform for consistent display performance across different operating conditions.

Everyday Home Use

For DIY enthusiasts and makers, this module offers an accessible way to add visual feedback to Raspberry Pi, Arduino, or other microcontroller projects. The dual interface options (8-bit parallel and SPI) provide compatibility with various development boards and skill levels. Common applications include weather stations, sensor displays, retro gaming consoles, or custom user interfaces for smart home projects.

Benefits and Buying Value

This display module provides specific advantages through its combination of screen technology, physical dimensions, and connectivity options. These characteristics offer practical solutions for electronics projects requiring visual output without excessive space consumption.

Reuse and Low Maintenance

The solid-state construction with no moving parts contributes to reliable operation across the specified temperature range. The display technology does not require specialised maintenance beyond proper electrical connection and operation within specified parameters. The ability to adjust display direction through software provides flexibility if the module is repurposed for different projects.

Why Choose This Product

This module offers a balanced combination of screen size, resolution, and interface options at a compact physical footprint. The IPS screen technology provides better colour representation than basic TFT alternatives, while the square display format makes efficient use of available space for both numerical and graphical information. The dual interface support increases compatibility with different microcontroller platforms and development approaches.
