SMT Double-Sided Splicing Tape in 8mm, 12mm, 16mm, and 24mm Widths for Placement Machine Assembly

This SMT double-sided splicing tape serves as a specialised consumable within electronics manufacturing, specifically engineered for compatibility with placement machines. Its primary function is to provide a reliable adhesive medium for securing components during automated assembly processes. The tape is characterised by its good viscosity and stability, two properties critical for maintaining component position and integrity throughout the placement cycle. Available in a practical yellow colour as standard, with alternative colour options, it offers a clean, unprinted surface suitable for a variety of SMT applications. The product is structured around providing choice, with four distinct widths and several colour variants to match different machine specifications or workflow identification systems.

Features and Construction

The splicing tape is defined by its measurable specifications and intended application. Selection is based on concrete attributes like width and colour, which are directly supported by the source information.

Material and Build

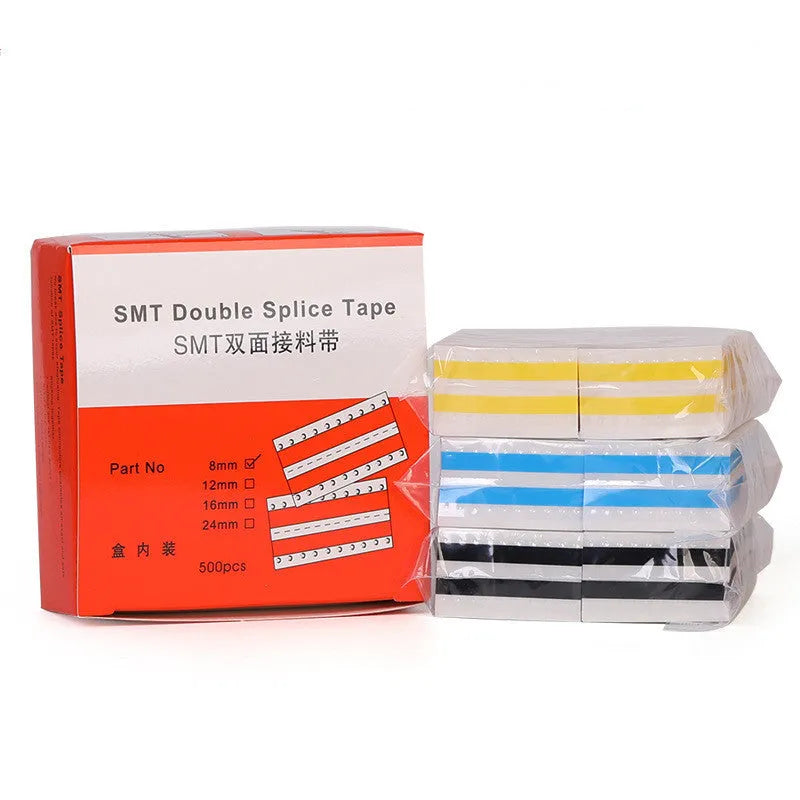

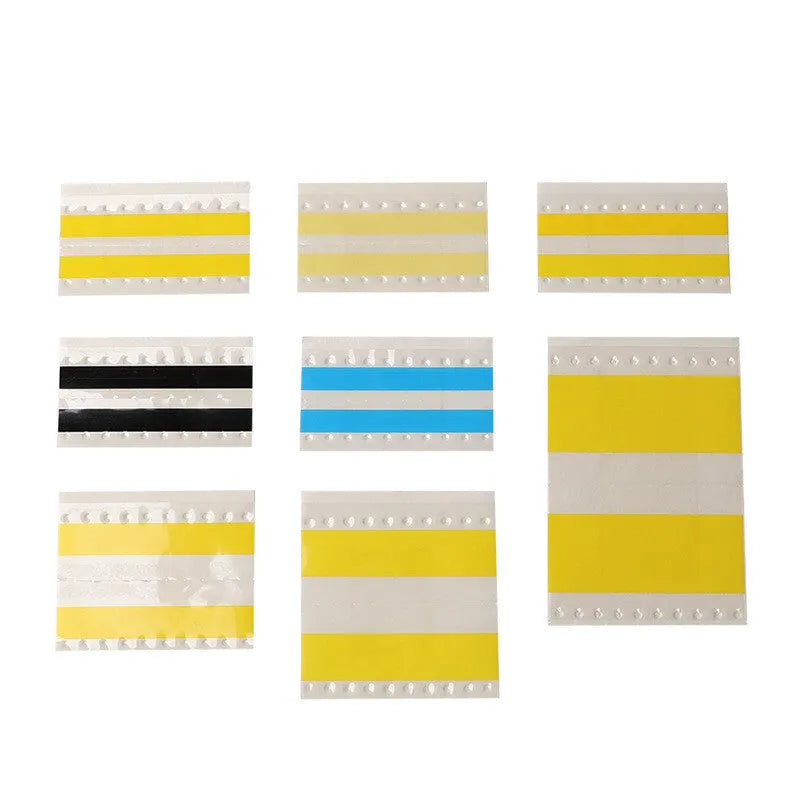

The core functional attributes highlighted are the tape's good viscosity and stability. These properties are essential for its role in placement machines, ensuring components remain securely attached during handling and placement. The tape is supplied without any printing, presenting a uniform adhesive surface. While the specific substrate material is not detailed in the provided text, the product is offered in several colour finishes: Yellow, Black, Blue, and a variant described as Nitto Gum. The colour serves a practical purpose, often for visual differentiation between tape lines or matching machine feeder types in a production setting.

Size and Practical Fit

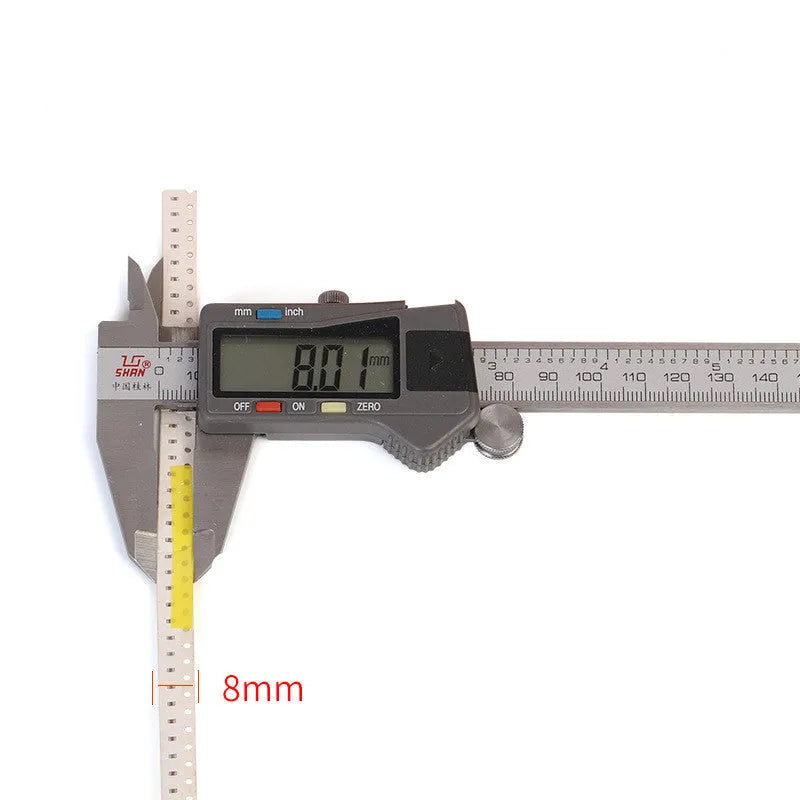

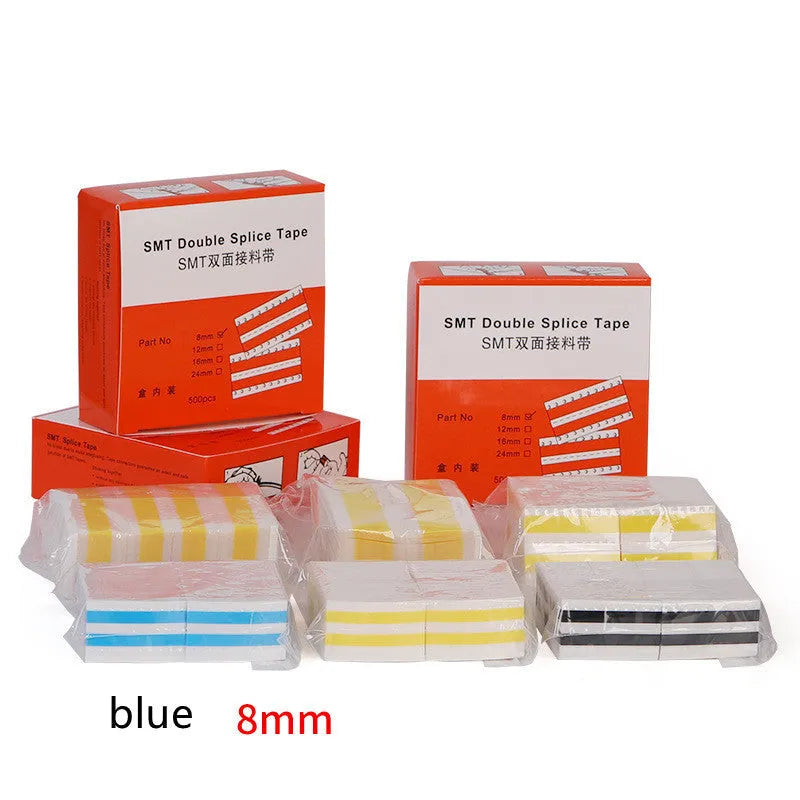

The tape is precisely dimensioned to fit placement machine requirements, available in four exact widths: 8mm, 12mm, 16mm, and 24mm. This range allows users to select the tape that corresponds to their specific machine model or the component size being handled. The 8mm width offers the broadest colour selection, while the wider variants (12mm, 16mm, 24mm) are available in the standard yellow. The product is supplied in defined quantities: most rolls contain 500 pieces, providing a substantial amount for production runs, while the yellow 24mm variant is supplied in a pack of 250 pieces.

Uses and Placement

This product has a clearly defined industrial application, removing guesswork about its suitability. Its use is tied directly to the machinery and processes mentioned in the source material.

Event or Professional Use

Its sole stated application is for use with placement machines, which are standard equipment in electronics manufacturing for populating printed circuit boards (PCBs) with surface-mount components. In this professional context, the tape's good viscosity ensures components picked up by the machine's nozzle remain adhered to the tape carrier until the placement moment, while its stability prevents slippage or misalignment. The availability of multiple widths allows it to be matched to different feeder types or component reel sizes commonly found on production lines.

Everyday Home Use

This product is not designed for casual or domestic use. Its application is explicitly industrial, focused on placement machines within manufacturing environments. Its specifications, such as width tolerance and viscosity, are calibrated for high-speed automated assembly rather than manual crafting or general-purpose adhesion. Users should consider its intended scope of application as stated when evaluating its fit for any purpose outside professional SMT assembly work.

Benefits and Buying Value

The value of this splicing tape lies in its role as a reliable, specification-driven consumable for a defined industrial process. It provides a direct solution for a specific stage in electronics manufacturing.

Reuse and Low Maintenance

As a consumable tape, its value is realised through consumption in the production process. The benefit comes from its reliability during that single use cycle—ensuring components are presented correctly to the placement machine. The defined pack sizes (500 pieces for most variants, 250 for yellow 24mm) offer a known quantity for production planning, helping to minimise machine downtime for tape changes. Choosing the correct width and colour for your machine setup contributes to smooth, uninterrupted operation.

Why Choose This Product

This splicing tape provides a focused solution for placement machine operation. The key reasons for selection are grounded in its stated features: the multiple width options allow for precise matching to machine feeders, the good viscosity supports consistent component pick-up, and the stability aids in accurate placement. The variety of colours, particularly in the 8mm width, can assist in organising production lines or differentiating between component types. When your requirement is a splicing tape for an SMT placement machine, this product offers the specific widths and functional properties needed for that task.
