Parallel Charging Board for RC Batteries: Charge Four 2-8S Lithium Packs at Once

Managing multiple lithium polymer (LiPo) battery packs for radio-controlled models, drones, or other hobbyist electronics can be a repetitive and time-consuming task. This parallel charging board is designed to consolidate that process. It functions as an expansion adapter for your existing RC balance charger, allowing you to connect and safely balance charge up to four separate battery packs in a single session. By enabling simultaneous charging, it aims to significantly reduce the overall time spent waiting for packs to cycle through a single-port charger. The board is specifically engineered for packs with the same number of cells (2S to 8S), maintaining that cell count while their capacities add together. This practical tool is built with components rated for the higher combined currents involved in parallel charging, offering a more efficient workflow for enthusiasts with several batteries.

Features and Construction

The board's design prioritises both functionality and safety for handling multiple lithium battery packs concurrently. Its construction incorporates materials chosen for their electrical performance and durability under load, creating a reliable interface between your charger and batteries.

Material and Build

The core of the board is a printed circuit board (PCB) manufactured with thicker copper foil. This is a key factor in its ability to support the advertised charging current of up to 35 amps, as thicker copper reduces electrical resistance and heat generation under high load. Electrical connections are made via high-quality gold-plated connectors, which offer reliable conductivity and corrosion resistance. For safety, each T plug interface includes a removable silicone cap. These caps are provided to cover any unused connectors during operation, helping to prevent accidental short circuits caused by metal objects falling into the ports.

Size and Practical Fit

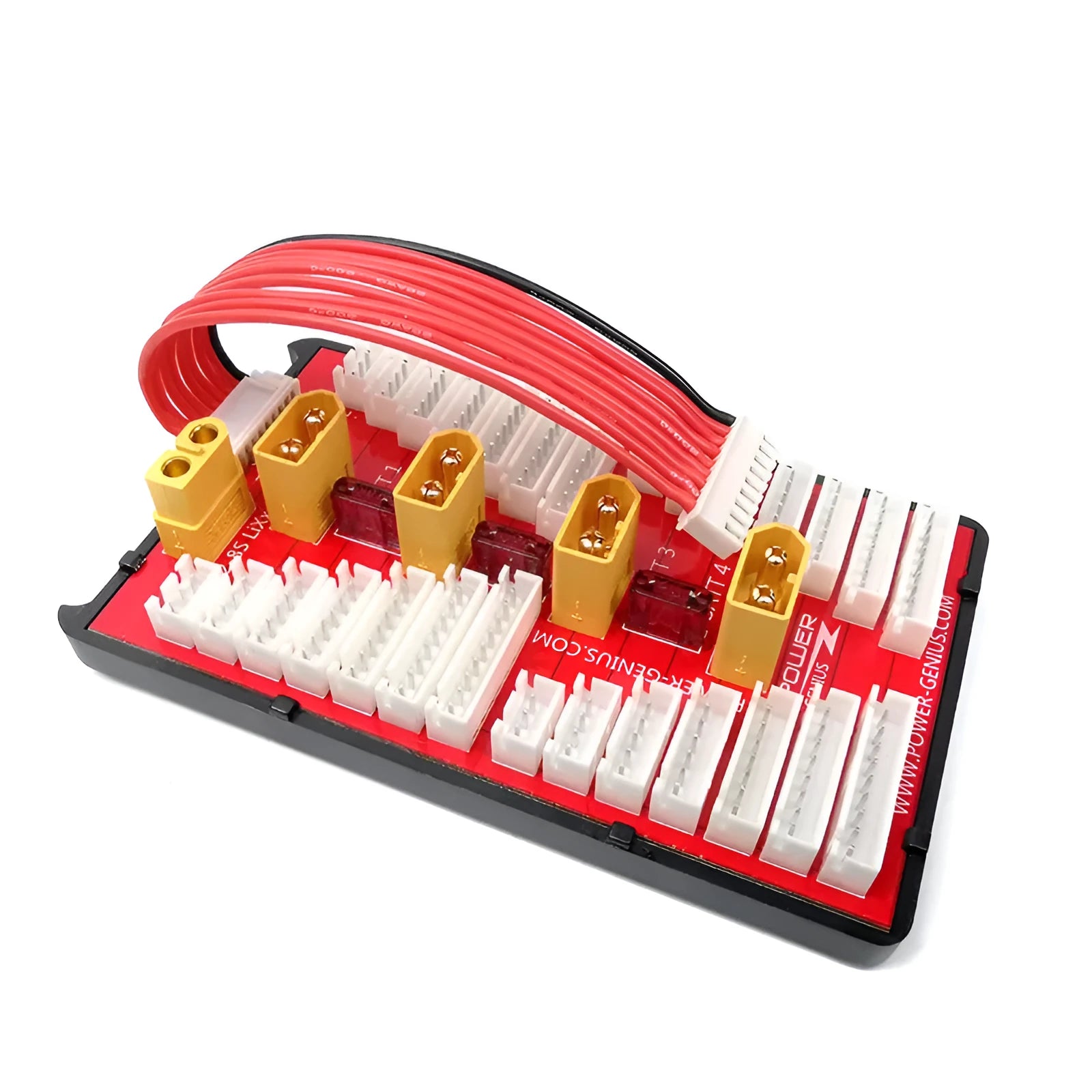

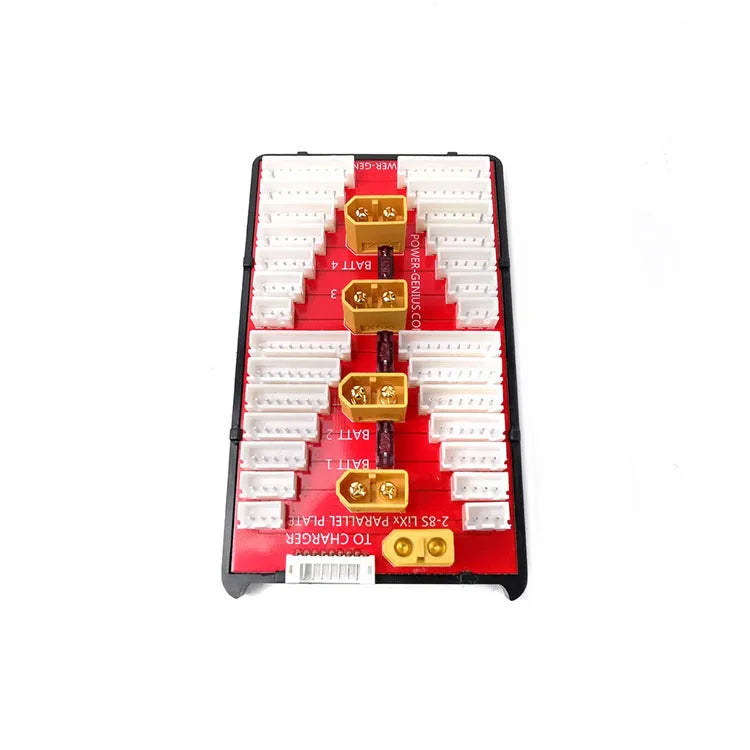

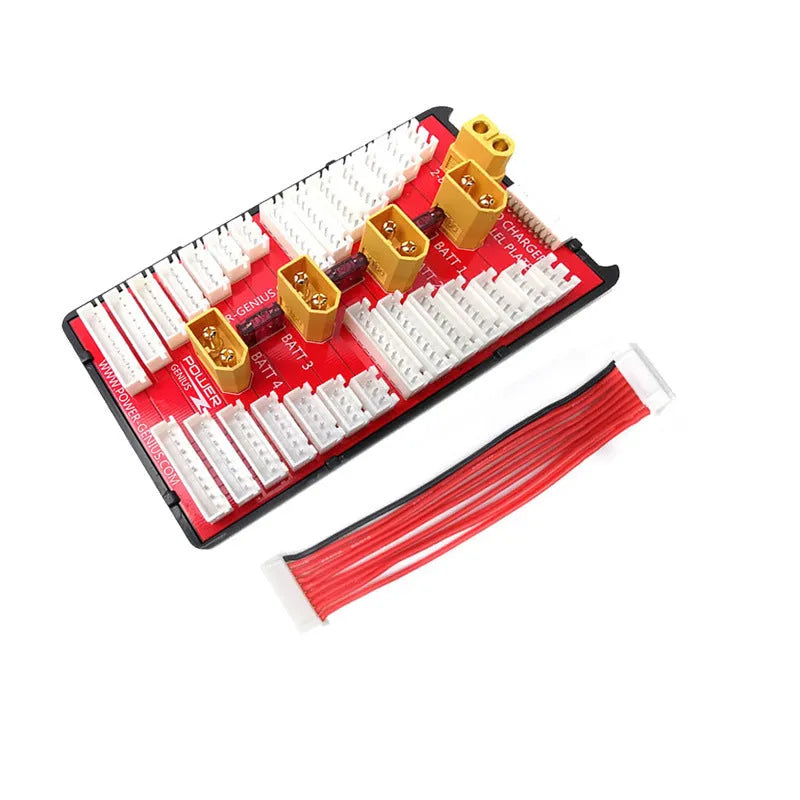

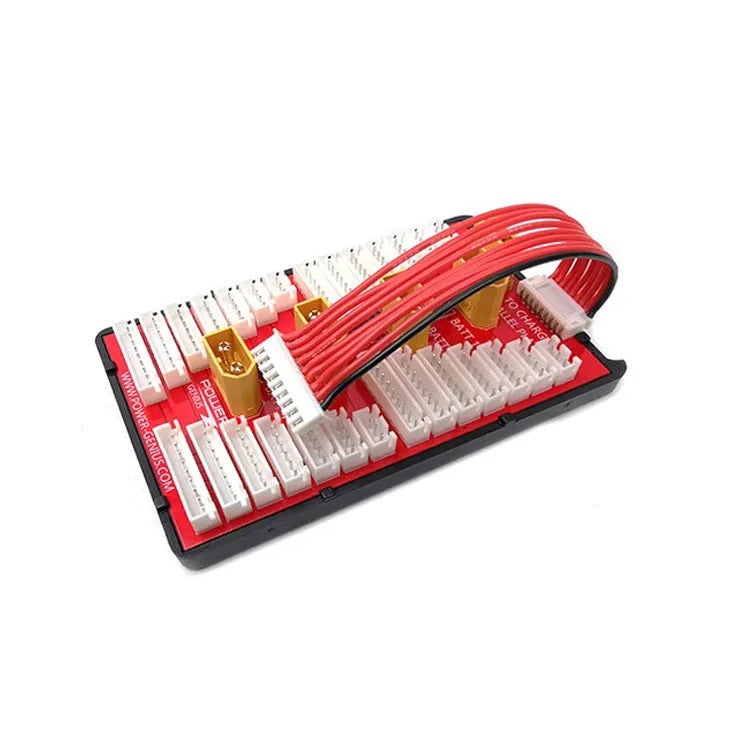

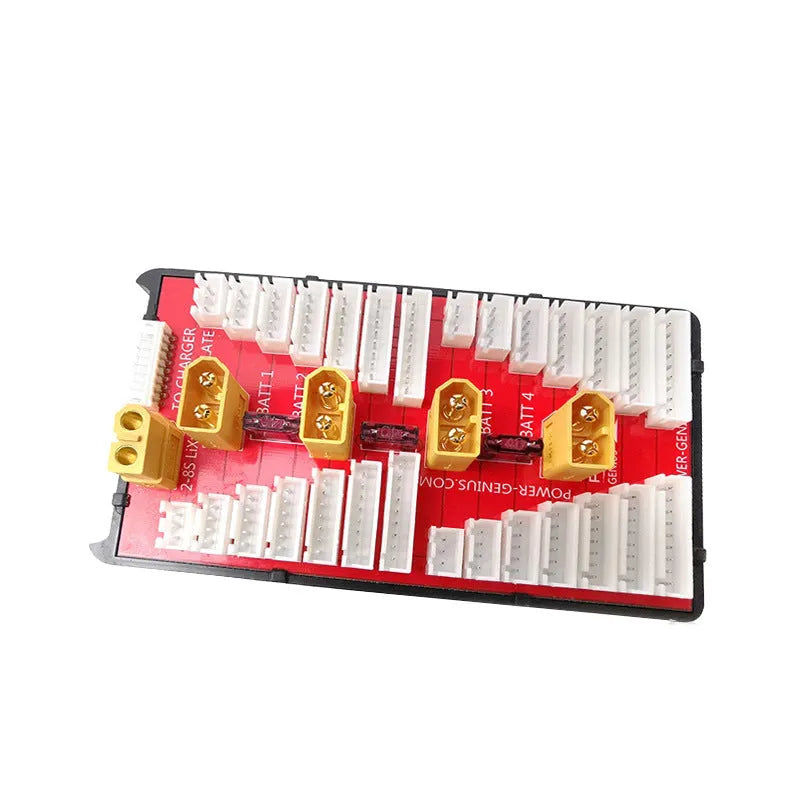

While specific physical dimensions are not provided, the board's layout is configured to accommodate four distinct battery connection groups. Each group consists of a main power output (T plug) and a corresponding balance port. The wiring for the balance ports uses flexible 18AWG multi-strand silicone sheathed cable, which is robust enough for the balance currents and resistant to cracking. The inclusion of internal 40A fuses for each battery group is a critical safety feature, designed to protect the circuitry should a connected battery have a dangerously high voltage difference compared to others on the board.

Uses and Placement

This adapter board serves a specific niche within the RC and hobby electronics ecosystem, transforming a standard single-output balance charger into a multi-pack station. Its use is centred around efficiency and safe battery management.

Event or Professional Use

For race days, flying events, or professional filming sessions with drones, having all batteries ready simultaneously is crucial. This board allows a pilot or driver to connect several discharged packs from a session to a single, powerful charger. By charging four packs at once, the downtime between sessions is minimised. Furthermore, the board's design can shorten the balance charging phase. When multiple cells of similar voltage are connected in parallel, their voltages average out, which can reduce the time the charger spends individually correcting minor cell imbalances compared to charging each pack sequentially.

Everyday Home Use

For the regular hobbyist, it simplifies post-run maintenance. Instead of monitoring and swapping batteries on the charger every hour or two, you can connect your entire set of packs (of the same cell count) and let the board manage the parallel charge cycle overnight or while you are occupied. It is important to follow the provided guidelines, such as ensuring cell voltages are closely matched before connection, to utilise the board safely and effectively in a home workshop or garage setting.

Benefits and Buying Value

The primary value of this parallel charging board lies in time savings and operational convenience, supported by integrated safety components. It is a functional upgrade for users who already own a suitable balance charger.

Reuse and Low Maintenance

As a passive adapter board with no complex electronics, it requires virtually no maintenance beyond keeping connections clean and ensuring fuses are intact. The robust PCB and silicone-insulated wiring are selected for repeated use. The silicone T plug caps are reusable and should be replaced after use to maintain the safety barrier against shorts. The board itself is a durable tool that, when used correctly according to the instructions, can be a long-term part of your charging setup.

Why Choose This Product

This board offers a clear, practical solution for users frustrated by the sequential charging of multiple LiPo packs. Its specification of supporting up to 35A charging current and including protective 40A fuses addresses key concerns about current handling and safety in parallel charging scenarios. The inclusion of ready-to-use silicone caps demonstrates attention to a common safety detail. Choosing this product is about investing in a more efficient charging workflow, reducing hands-on time, and leveraging your existing charger's capability to its fullest, provided you adhere to the necessary precautions regarding battery voltage matching.
