220V Music Tesla Coil Driver Board for High-Voltage Arc and Lightning Displays

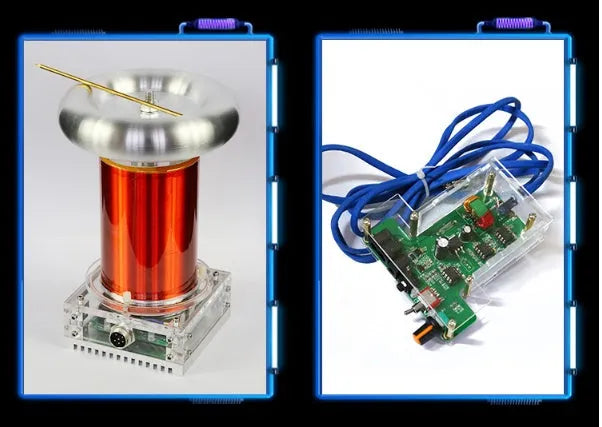

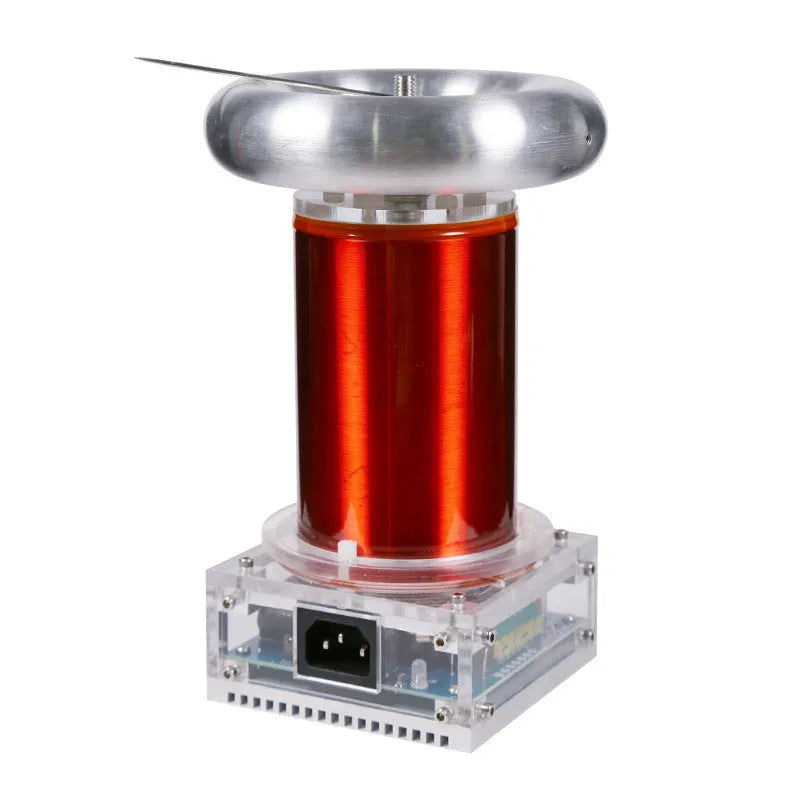

This driver board serves as the core power and control unit for constructing a musical Tesla coil or similar high-voltage demonstration apparatus. Designed for direct connection to standard 220V mains electricity, it removes the complexity of installing a dedicated ground wire, offering a more straightforward setup for enthusiasts, educators, and makers. The integrated arc extinguishing isolation device adds a layer of operational safety, while the 3.5mm audio input allows the spectacular electrical arcs to dance in sync with your music. With a robust build and clear technical specifications, it provides a practical foundation for science projects, educational models, and visually striking displays.

Features and Construction

The board consolidates several key functions into a single, manageable unit, focusing on user accessibility and controlled power delivery for high-voltage applications.

Material and Build

The unit is housed within a solid enclosure, contributing to its 1 kg total weight. Internally, it is built around electronic components configured for power conversion and signal processing. The construction is designed to be durable enough for repeated use in controlled environments, supporting the board's role as a central driver for Tesla coil systems.

Size and Practical Fit

With dimensions of 100 mm in width, 115 mm in depth, and 205 mm in height, the driver board presents a compact footprint. This size makes it relatively easy to incorporate into a project setup or transport for demonstrations. Its physical form factor is a practical consideration for builders who need to house the unit alongside the Tesla coil primary and secondary circuits.

Uses and Placement

The primary application is enabling the creation of high-voltage, music-responsive arc displays, commonly associated with Tesla coil demonstrations.

Event or Professional Use

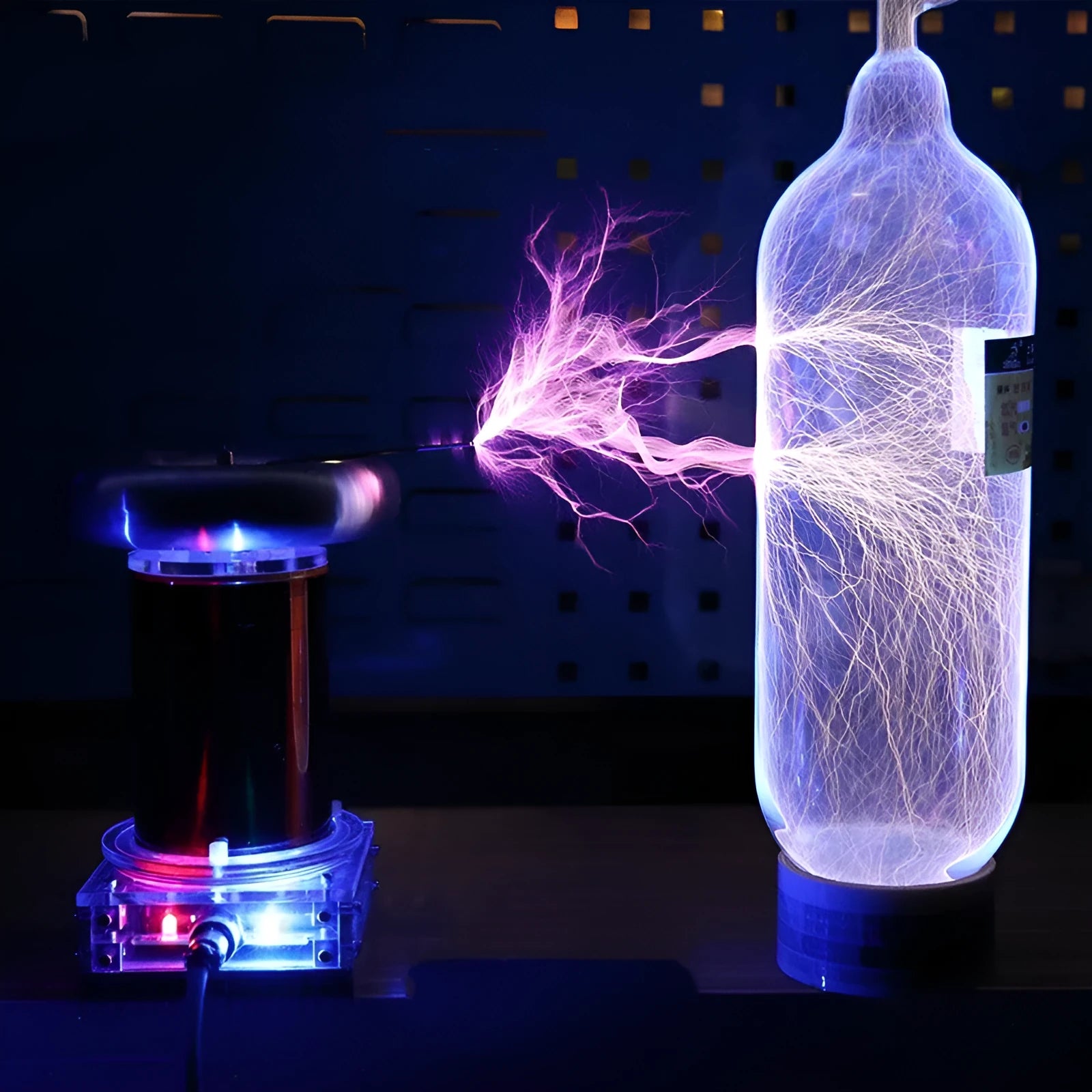

For science museums, educational workshops, or special event stages, this driver board can power a centrepiece display. Its ability to produce arcs adjustable up to 20 cm, synchronised to audio, creates a compelling visual and auditory experience that demonstrates principles of electricity and resonance. The specified 20-metre potential discharge distance indicates a capability for significant scale under ideal, controlled conditions.

Everyday Home Use

For hobbyists and advanced students working on home science projects, the board offers a core component for building a functional Tesla coil. Its direct 220V operation simplifies home workshop setup. However, users must adhere strictly to the safety guidelines, including maintaining the recommended 1-metre observation distance and following the provided power-on sequence.

Benefits and Buying Value

The value of this product lies in its integrated design and adherence to specified operational parameters for a specialised application.

Reuse and Low Maintenance

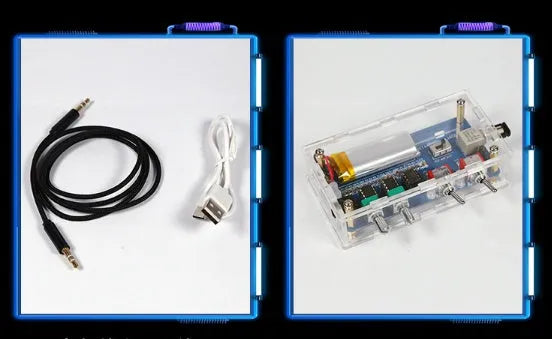

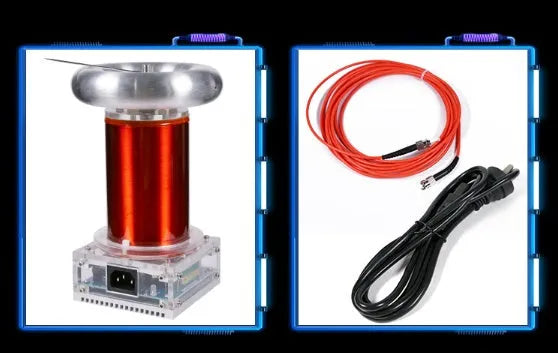

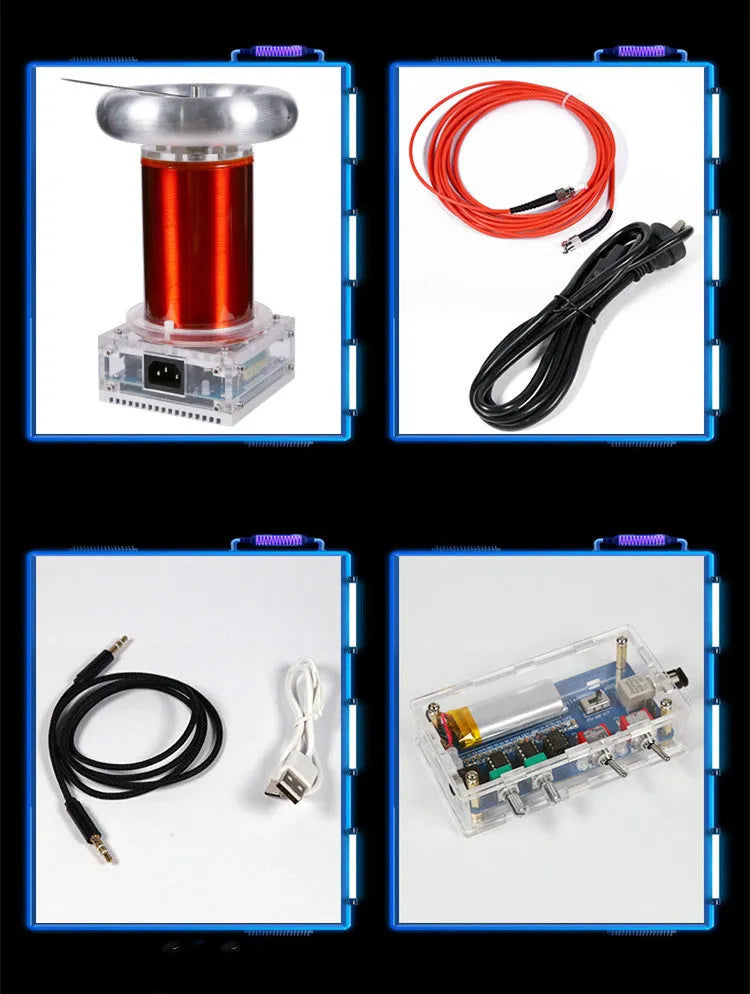

The solid-state construction and lack of moving parts suggest potential for reuse across multiple projects or demonstrations. Careful handling and adherence to usage notes—such as limiting continuous operation to 3-5 minute intervals—support its longevity. The provision of all necessary cables (power, audio, USB, fibre optic) in the package means you have a complete set of connectors ready for your build.

Why Choose This Product

This driver board is a specific solution for a specific task: powering a musical SSTC (Solid State Tesla Coil). Its key differentiators are the direct 220V power supply that bypasses ground wire requirements, the built-in arc extinguishing safety feature, and the audio modulation capability. It provides measurable specifications—200VA capacity, 250W average power, and defined dimensions—which allow for informed project planning rather than guesswork.
