Multi-ring Precision Potentiometer 20k Ohm Linear Tuning Glass Glaze Film

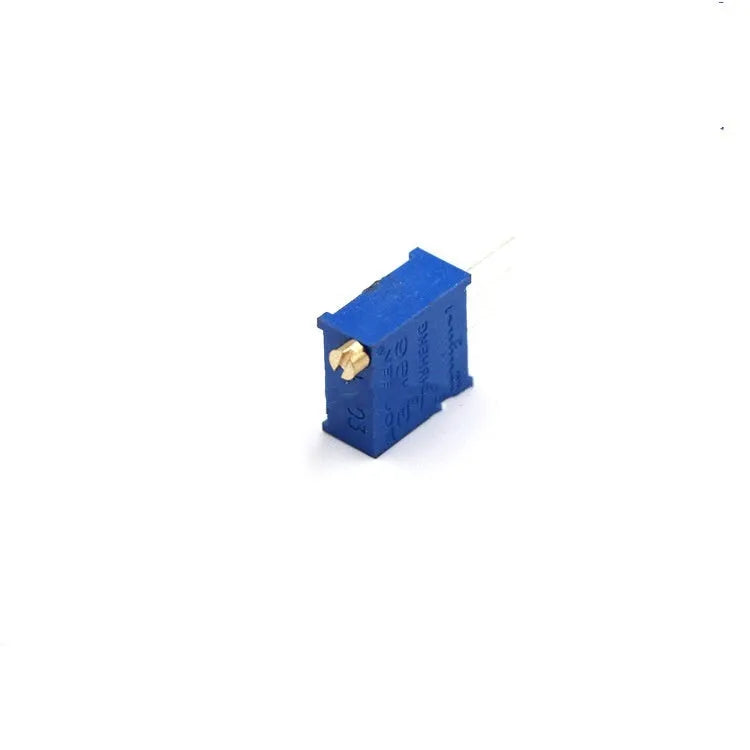

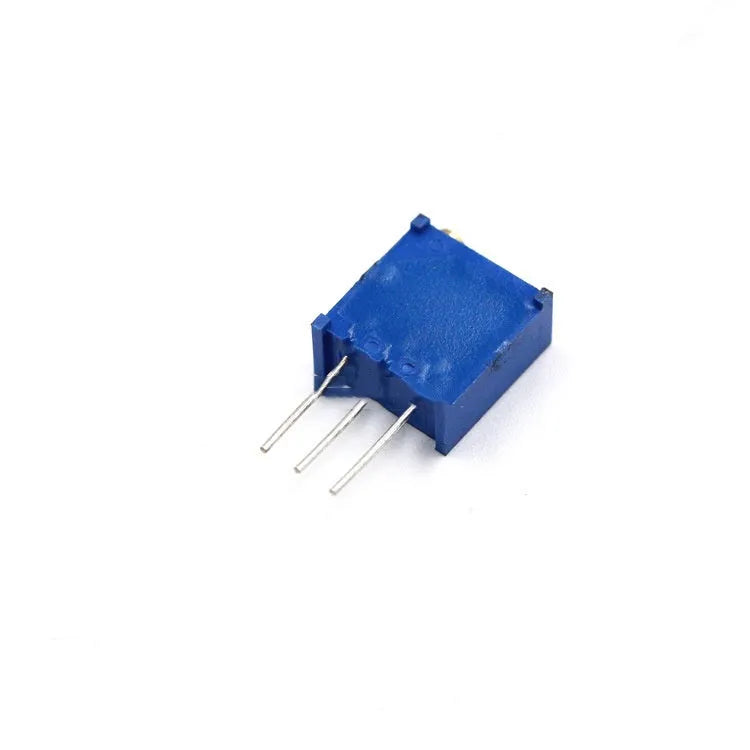

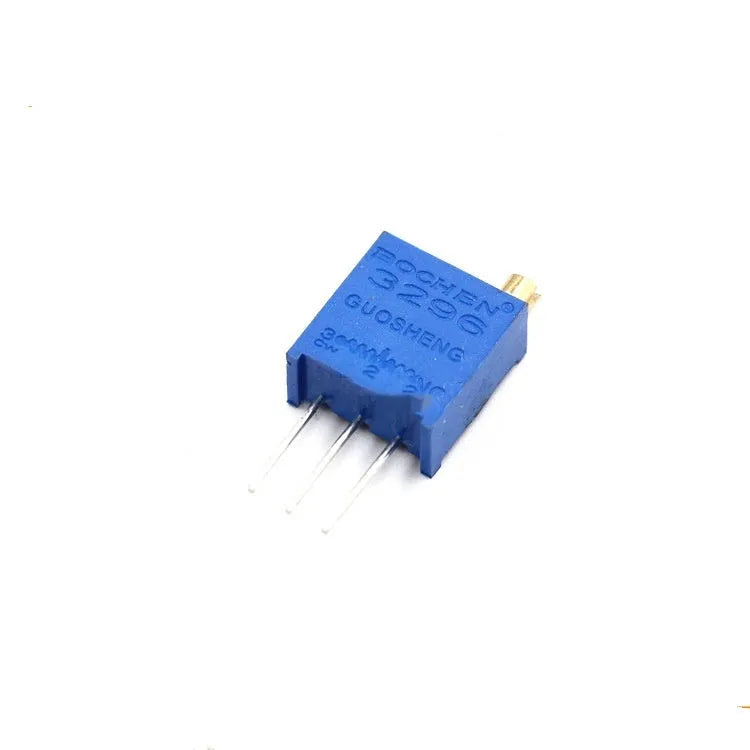

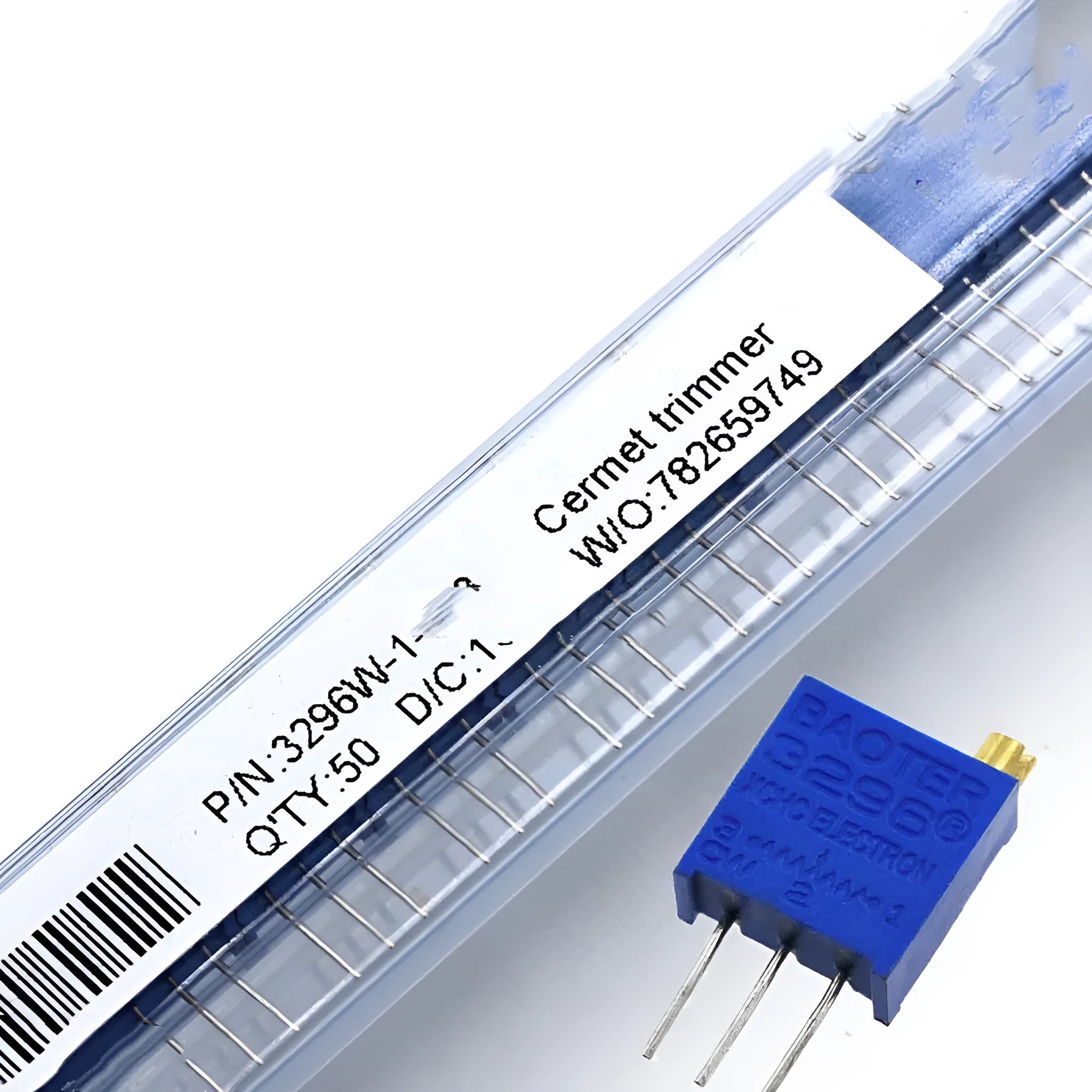

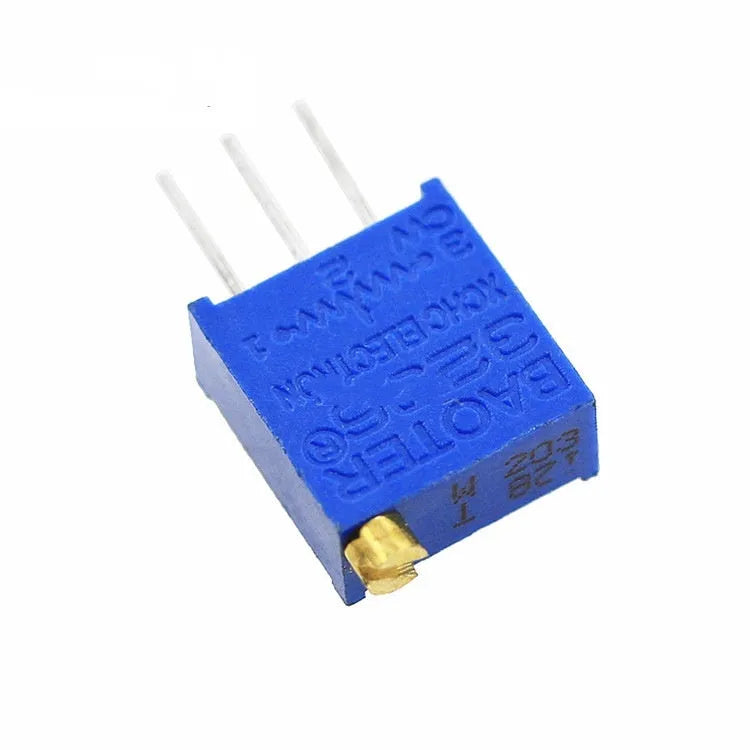

This multi-ring precision adjustable resistor potentiometer offers a linear resistance change of 20k ohms, making it suitable for fine-tuning applications in electronics. With a rated power of 0.5 watts and a tolerance of ±10%, it provides consistent performance for prototyping, calibration, or replacement. The glass glaze film construction supports stable electrical characteristics during repeated adjustments. This blue-coloured unit is a single piece, ideal for precise control in circuits where accuracy matters.

Features and Construction

The potentiometer's design centres on multi-turn adjustment, which allows for incremental changes that single-turn controls cannot achieve. Key specifications include a nominal resistance of 20k ohms, linear X-type resistance change, and a resolution of 100%.

Material and Build

Constructed with a glass glaze film element, this component ensures stable resistance over its adjustment range. The blue exterior is functional, not decorative, and the unit includes a spindle for rotation. Contact resistance is rated at 3 ohms, with insulation resistance of 1 MΩ.

Size and Practical Fit

The exact dimensions are not provided in the source text, but the potentiometer is a standard electronic component suitable for mounting on boards or panels. It weighs approximately 90g and is designed for manual adjustment via spindle rotation.

Uses and Placement

This device is intended for precision fine-tuning in electronic circuits, such as in test equipment, audio devices, or laboratory setups where exact resistance values are needed. The multi-turn feature reduces the risk of overshooting the desired setting.

Event or Professional Use

Technicians and engineers can use it for calibration tasks or as a replacement part in circuit boards requiring a 20k ohm linear potentiometer. The 0.5W power rating suits low-power signal applications.

Everyday Home Use

Hobbyists and makers may incorporate this potentiometer into DIY electronics projects, such as adjustable voltage regulators or simple control panels. The linear taper makes it predictable for manual adjustments.

Benefits and Buying Value

The multi-circle design offers precise control that reduces waste during adjustment. The glass glaze film element provides reliable performance over many cycles, and the 100% resolution rating means every turn produces a consistent change.

Reuse and Low Maintenance

As a passive component, this potentiometer requires no routine servicing. Its construction supports long-term use in static installations, though dust and moisture should be avoided to maintain contact integrity.

Why Choose This Product

With a linear resistance curve and 20k ohm rating, this potentiometer fits common circuit requirements for fine-tuning. The multi-turn capability and glass glaze film material are concrete advantages over standard carbon-film units for precision work.
