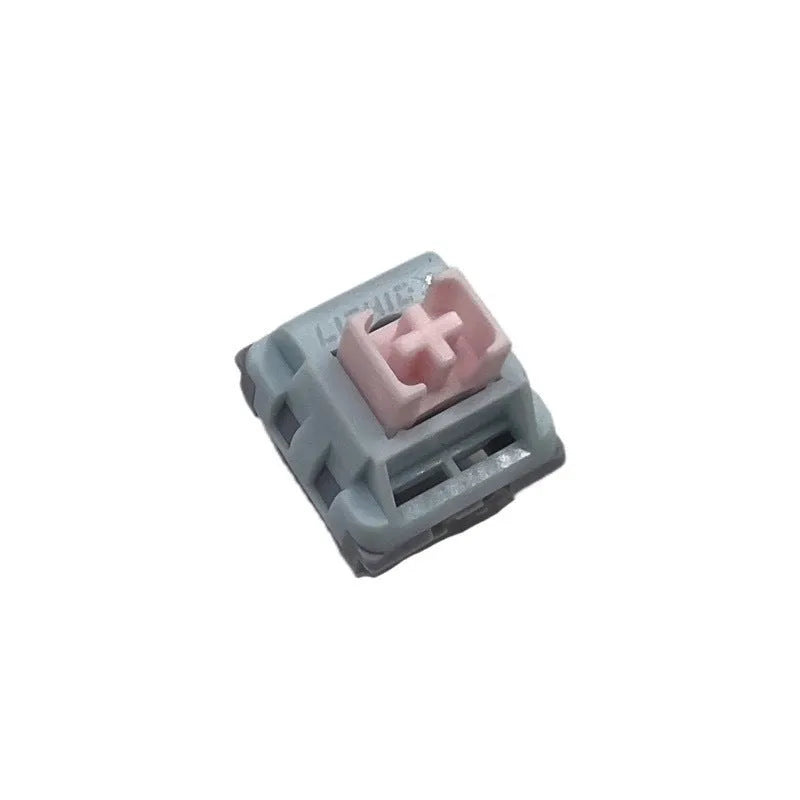

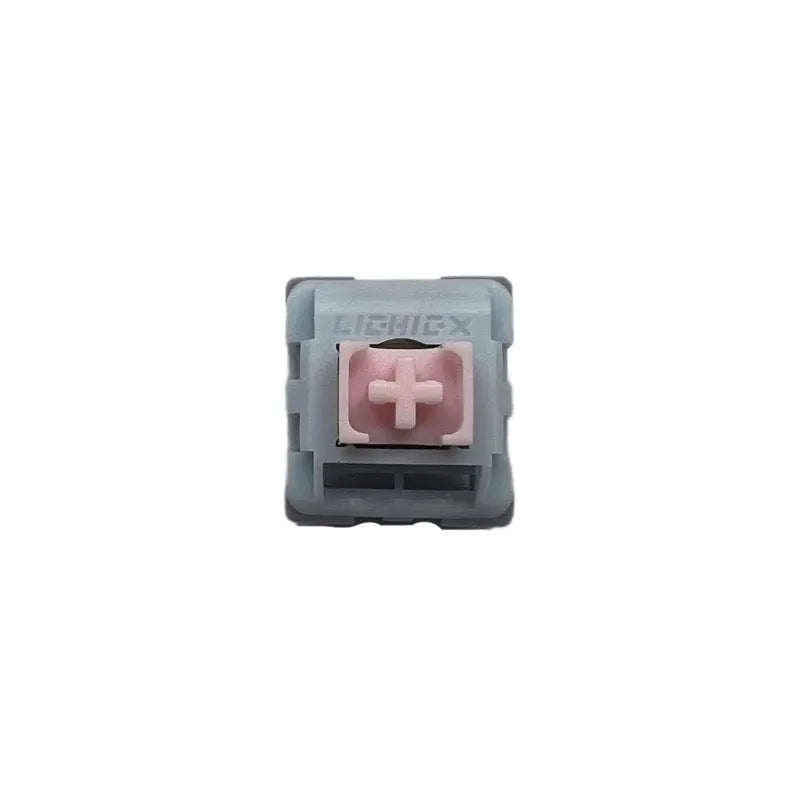

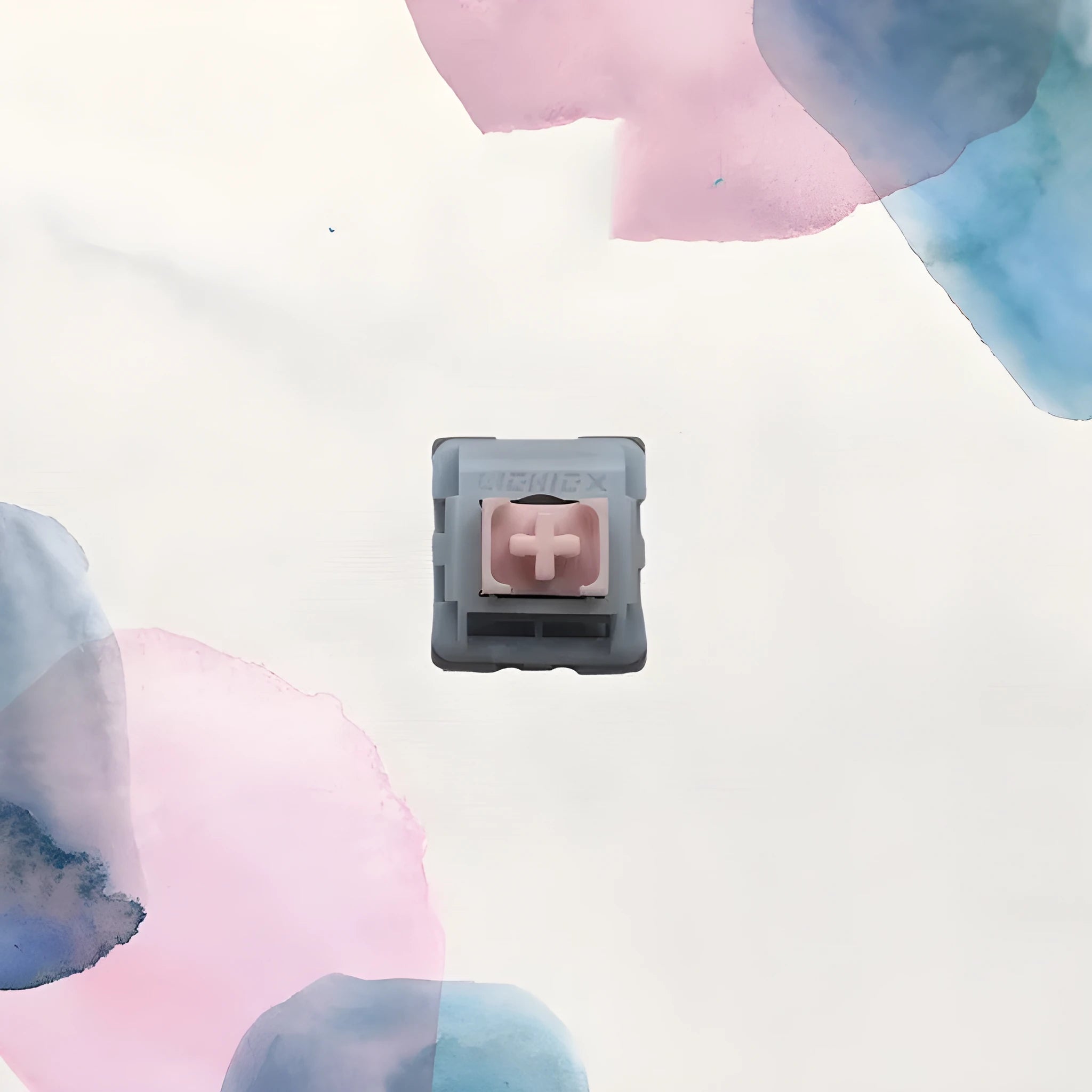

Dew Axis-4 mechanical keyboard switch bottom housing with custom Japanese silencing oil and 3.7mm linear travel

This specialised bottom housing component forms the foundation for building custom linear mechanical keyboard switches with reduced acoustic signature. Designed for keyboard enthusiasts seeking to create personalised typing experiences, it incorporates several engineering refinements that differentiate it from standard switch housings. The dew axis-4 colourway provides visual identification, while the technical specifications cater to users who prioritise consistent keypress feel alongside noise reduction. With precise pressure ratings and travel measurements, this housing enables predictable switch behaviour suitable for both gaming and extended typing sessions where quieter operation is beneficial.

Features and Construction

The housing employs a bridge plug-in structural design with substantial side buckles that secure the switch assembly during use. This construction approach enhances stability compared to simpler clip-together designs, particularly important for switches experiencing frequent actuation. Material selection focuses on durable polymers with specific performance characteristics rather than aesthetic finishes alone.

Material and Build

Upper cover construction utilises POK polymer raw materials, chosen for their mechanical properties including wear resistance and dimensional stability under repeated compression. The bottom shell main body employs PA (polyamide) material enhanced with a significant proportion of GF C5 additives, which improve rigidity and reduce potential deformation from spring force over time. The shaft core itself combines materials strategically: a POM (polyoxymethylene) body provides low-friction sliding characteristics while the integrated custom soft silicone gel insert contributes to sound absorption without compromising tactile consistency.

Size and Practical Fit

With a bottom-out stroke of 3.7mm±0.3mm and trigger point at 1.9mm±0.3mm, this housing accommodates standard MX-style switch components while providing measurable travel parameters. The exclusive XC55 high-standard production spring measures 16mm in its single-stage configuration, delivering the documented pressure progression from 38g initial actuation to 55g bottom-out force. These specifications ensure compatibility with most mechanical keyboard PCBs and plates designed for Cherry MX-style switches, allowing straightforward integration into custom builds.

Uses and Placement

This component serves as the structural base for assembling complete mechanical keyboard switches, intended primarily for custom keyboard builders rather than end-users purchasing pre-assembled keyboards. The design considerations make it particularly relevant in environments where keyboard noise could be distracting, though it remains equally functional in personal setups where acoustic preference drives component selection.

Event or Professional Use

In professional settings such as open-plan offices, recording studios, or streaming environments, the customised Japanese silencing oil lubrication provides measurable noise reduction compared to standard switch greases. The linear actuation characteristic eliminates tactile bumps that can sometimes produce additional sound, creating a consistently quiet keypress suitable for environments where multiple people work closely. The precise pressure ratings allow typists to develop consistent finger strength patterns during extended documentation or coding sessions without unexpected force variations between keys.

Everyday Home Use

For home office setups or personal gaming stations, the housing enables creation of switches that balance performance with consideration for household members or neighbours. The 3.7mm bottom-out distance provides sufficient tactile feedback for accurate typing without requiring excessive force, potentially reducing finger fatigue during long usage periods. Enthusiasts appreciate the ability to pair these housings with various stem and spring combinations to fine-tune their preferred actuation characteristics while retaining the core silencing benefits.

Benefits and Buying Value

The component offers several practical advantages derived from its specific material choices and engineering solutions. Rather than relying on generic claims, each benefit connects directly to documented specifications that influence switch performance and longevity. These characteristics provide value primarily through functional improvements rather than cosmetic enhancements.

Reuse and Low Maintenance

The durable polymer construction, particularly the PA+GF C5 improved bottom shell, resists wear from repeated spring compression and stem movement. This material resilience supports switch disassembly and reassembly during maintenance or modification cycles without compromising structural integrity. The factory-applied Japanese silencing oil maintains its properties through extended use cycles, reducing the need for re-lubrication that sometimes becomes necessary with standard grease applications in custom switches.

Why Choose This Product

This housing provides measurable specifications including exact stroke measurements and pressure ratings that enable predictable switch behaviour, unlike components with vague or unspecified performance characteristics. The customised Japanese silencing oil represents a specific engineering solution rather than generic noise reduction claims. For builders seeking consistency across multiple switches in a single keyboard, the four-piece package allows creation of a modifier key cluster or a complete smaller keyboard with identical component quality throughout.
