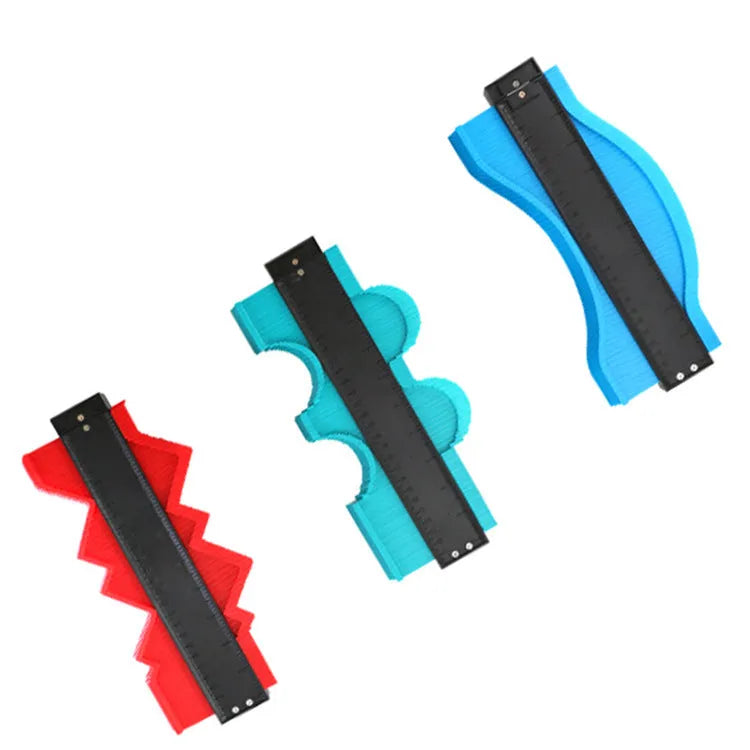

Contour gauge profile gauge carpentry measurement tool with ABS frame for irregular shape copying in woodworking, available in 12cm and 25cm sizes in blue, green, and red
Contour gauge profile gauge carpentry measurement tool with ABS frame for irregular shape copying in woodworking, available in 12cm and 25cm sizes in blue, green, and red
Contour gauge profile gauge for irregular shape copying in woodworking
When fitting floorboards, replicating moulding profiles, or trimming worktops, getting the shape right saves time and material. This contour gauge offers a simple mechanical solution for duplicating curves, edges, and corners without guesswork. The sliding pins lock into position when pressed against the object, giving you an accurate template to transfer to your workpiece. The frame is made from ABS plastic, making it lightweight and practical for everyday use. Available in two sizes and three colours, this gauge fits a range of woodworking and DIY tasks.
Features and Construction
The contour gauge is built around a straightforward pin-and-lock mechanism that requires no batteries or electronics. The ABS frame provides structural stability while keeping the tool portable.
Material and Build
The frame is made from ABS plastic, a material chosen for its combination of lightweight feel and adequate strength for repeated pressing against surfaces. The sliding pins are arranged tightly to capture fine detail in the object's profile. No special assembly is needed—the tool is ready to use straight from the packet.
Size and Practical Fit
Two size options are available: a 12cm gauge and a 25cm gauge. The 12cm version has outer dimensions of 146x105x21mm, while the 25cm version measures 275x105x21mm. These sizes cover common profile widths for tasks like edge profiling, pipe copying, and corner moulding duplication. Pick the smaller version for tight spaces or the larger one for broader surfaces.
Uses and Placement
Contour gauges are used in carpentry, flooring installation, and general DIY when a precise shape needs to be transferred from one surface to another. They also have applications in tiling and metalworking for copying irregular edges.
Event or Professional Use
For tradesmen fitting kitchens, bathrooms, or wooden floors, this gauge speeds up the process of marking out shapes on materials. The 25cm size is particularly useful for copying longer edges of skirting boards or worktops. The ABS frame is easy to wipe clean between jobs.
Everyday Home Use
Home DIY enthusiasts can use the gauge for small repair tasks such as copying a broken shape to cut a replacement piece, or fitting a shelf around an existing pipe. The 12cm size is handy for smaller projects like picture frames or hobby woodworking.
Benefits and Buying Value
A contour gauge reduces the trial-and-error approach common in shape-transfer tasks, saving both time and material. The tool's simple operation means no learning curve—just press and transfer.
Reuse and Low Maintenance
Because the gauge has no moving parts that require lubrication or replacement, maintenance is limited to occasional dust removal. The ABS plastic resists warping under normal workshop conditions, making the gauge reusable on countless projects.
Why Choose This Product
With two size options and a choice of three colours, this contour gauge offers flexibility at a practical price point. Its lightweight ABS construction makes it easy to carry in a tool belt or toolbox. For anyone regularly working with irregular shapes, it is a straightforward addition to the toolkit.
