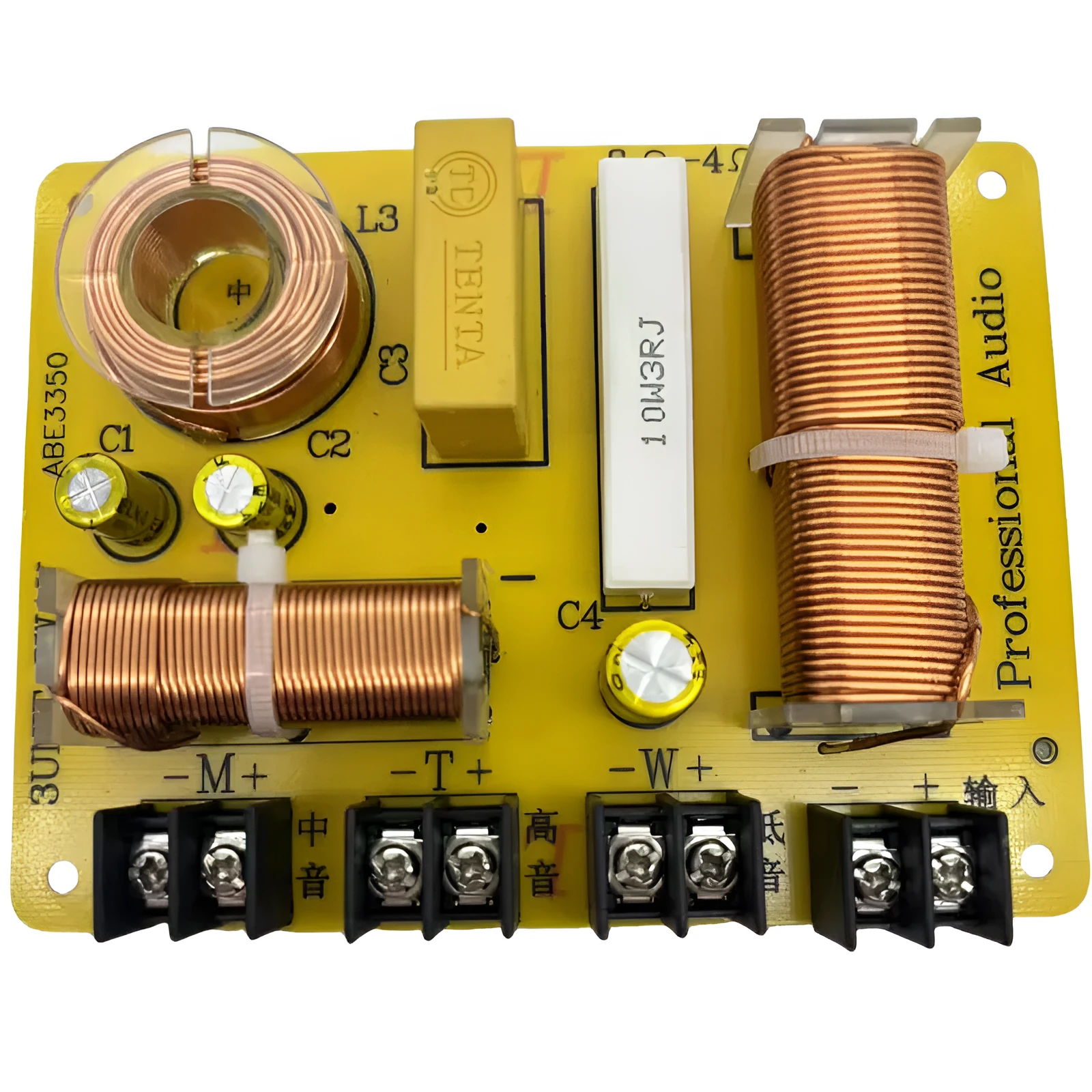

Three-way 400W Audio Crossover with Solderless Design at 900Hz and 3750Hz

This three-way audio crossover divides your speaker signal into high, mid, and low frequency bands, allowing each driver to perform at its best. With a power handling capacity of 400W and a solderless design, it is a practical choice for both car audio and home speaker builds. The through-hole mounting style ensures a secure fit inside enclosures or panels.

Features and Specifications

The crossover is built around a straightforward three-way configuration, covering the full audible range through two defined crossover points. It is designed for easy integration into existing audio systems.

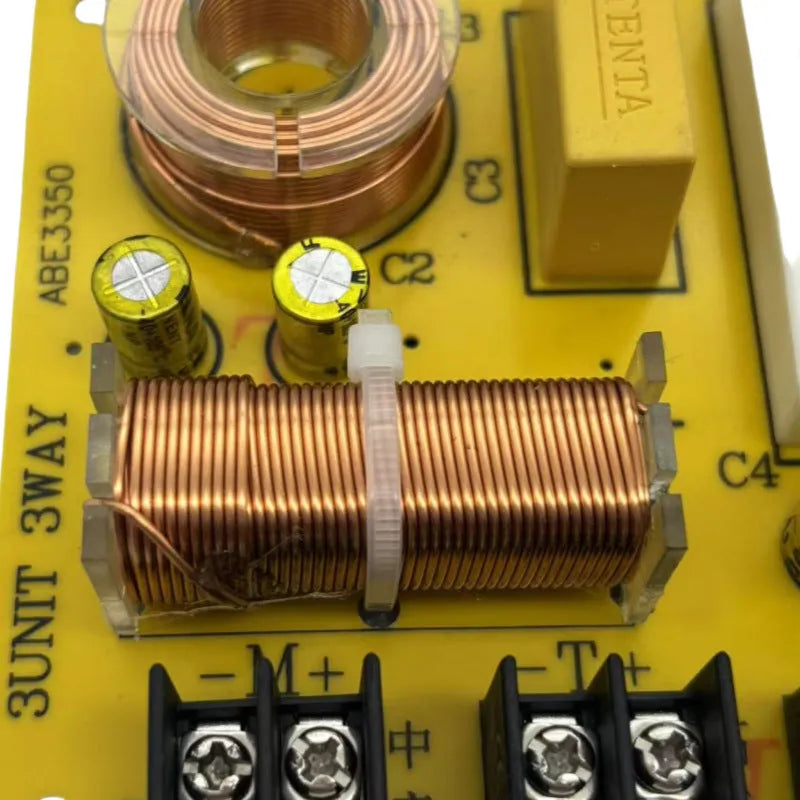

Three-Way Configuration

The unit includes one high, one mid, and one low channel. This division lets you send only the appropriate frequencies to tweeters, mid-range drivers, and woofers, reducing distortion and improving overall sound clarity.

400W Power Handling

Rated for 400W, this crossover can support moderate to high-power speaker setups without overheating or signal degradation. It suits home stereo upgrades and car audio systems alike.

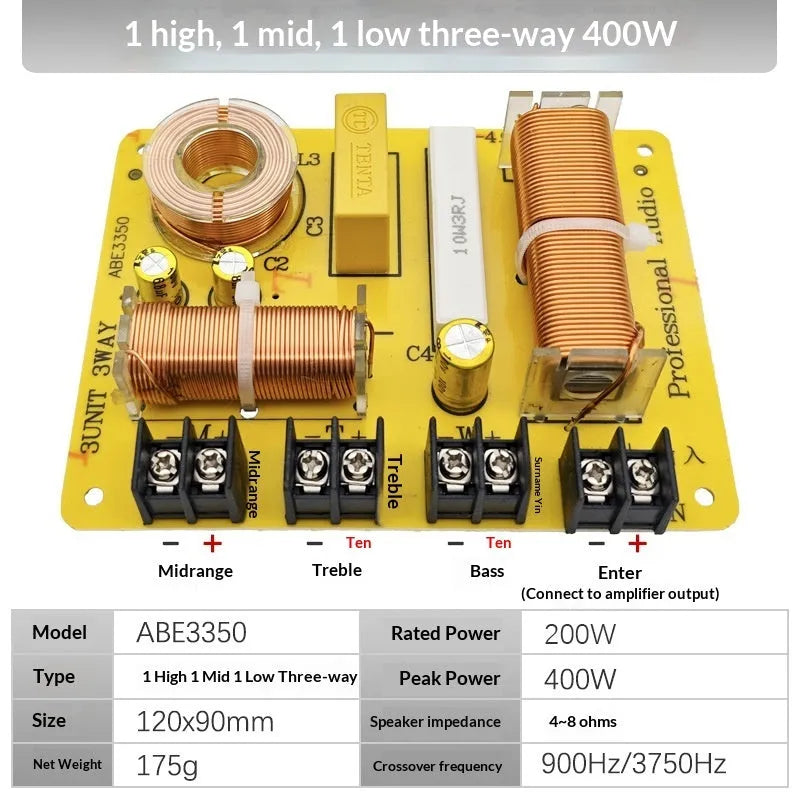

Crossover Frequencies

The crossover points are set at 900Hz (for the transition between low and mid frequencies) and 3750Hz (between mid and high frequencies). These fixed points work well with typical three-way driver arrangements.

Installation and Mounting

Designed for ease of use, the crossover requires no soldering, making it accessible to enthusiasts with basic wiring skills. The through-hole mounting type offers a stable method of attachment.

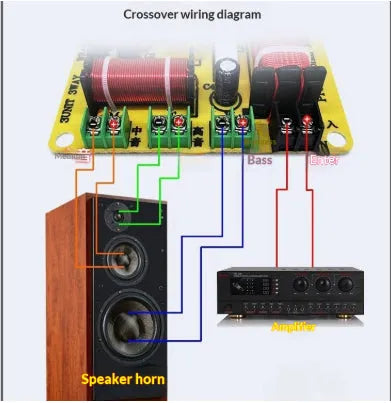

Solderless Setup

Connections are made via screw terminals or push connectors, so you can wire the crossover without a soldering iron. This simplifies assembly and reduces installation time.

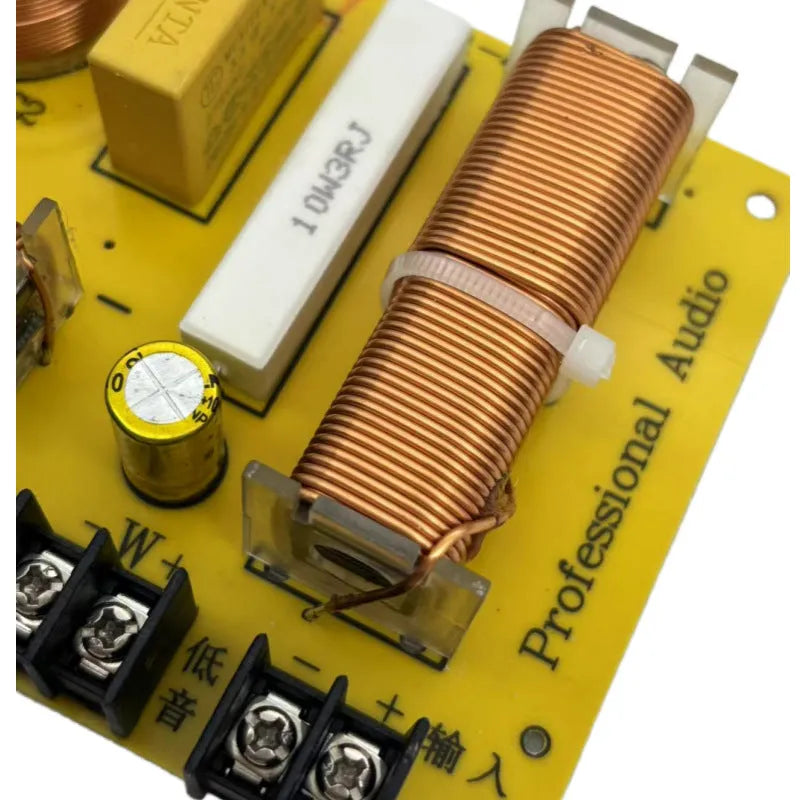

Through-Hole Mounting

The board is designed for through-hole mounting, meaning you can fasten it securely inside a speaker cabinet or mounting panel using screws or bolts. This keeps the crossover fixed in place and reduces vibration-related noise.

Uses and Applications

This crossover is suitable for a range of audio projects where a three-way frequency split is needed. It works particularly well in custom speaker builds and car audio upgrades.

Car Audio Systems

In vehicles, the crossover helps manage power distribution to separate tweeters, mid-range speakers, and subwoofers, leading to clearer sound at higher volumes.

Home Speaker Builds

For DIY home speakers, the crossover provides a simple way to create a three-way system without needing to design a complex circuit. The solderless feature makes it a good choice for first-time builders.

Benefits and Buying Value

The crossover offers reliable frequency splitting with minimal installation effort. Its solid power rating and straightforward design make it a cost-effective component for enhancing audio performance.

Improved Sound Quality

By directing each frequency band to the appropriate driver, the crossover reduces intermodulation distortion and lets each speaker operate within its optimal range. This leads to cleaner and more detailed audio reproduction.

Simple Installation

The solderless design and through-hole mounting reduce the skills and tools required. This crossover is a practical upgrade for anyone comfortable with basic wiring and screwdrivers.
