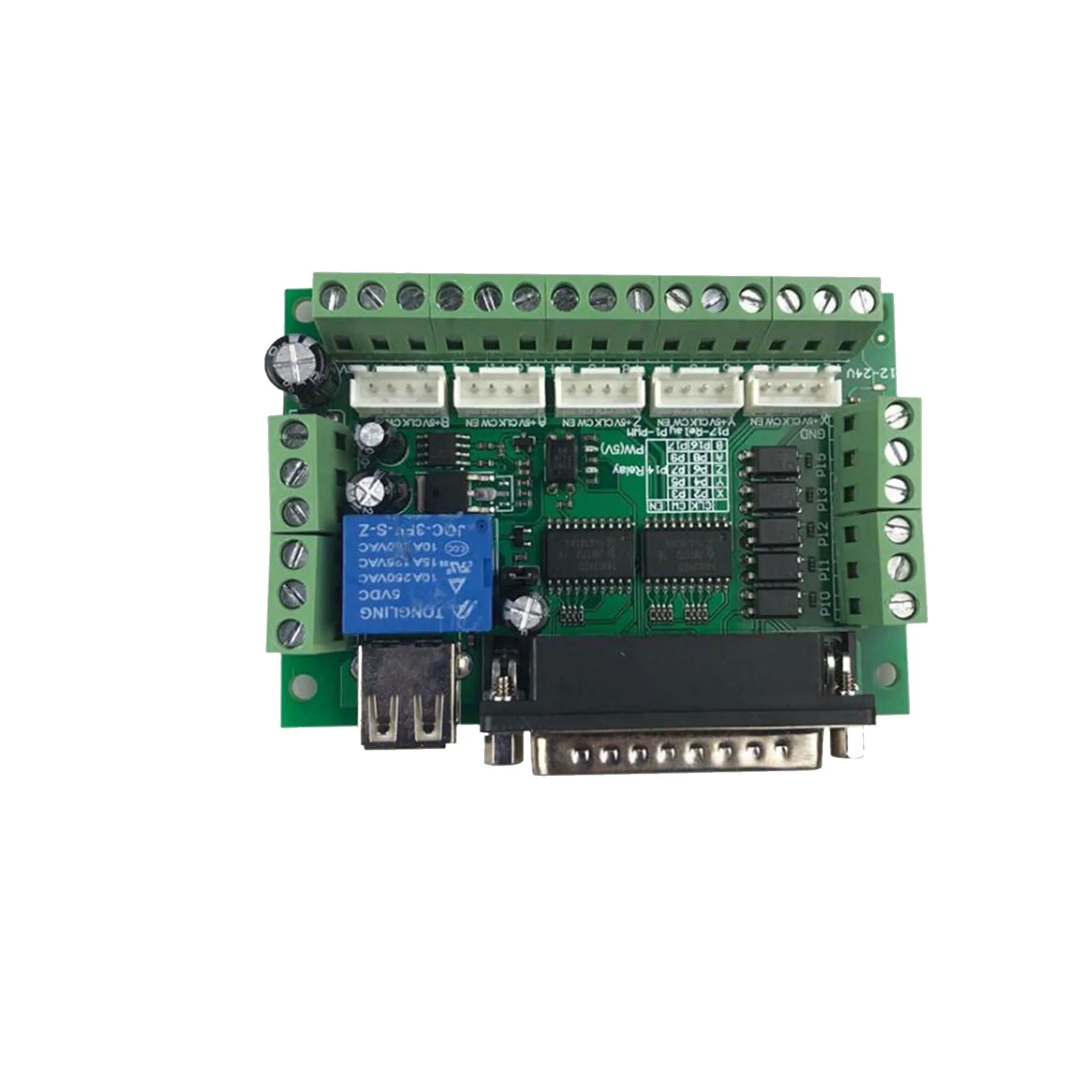

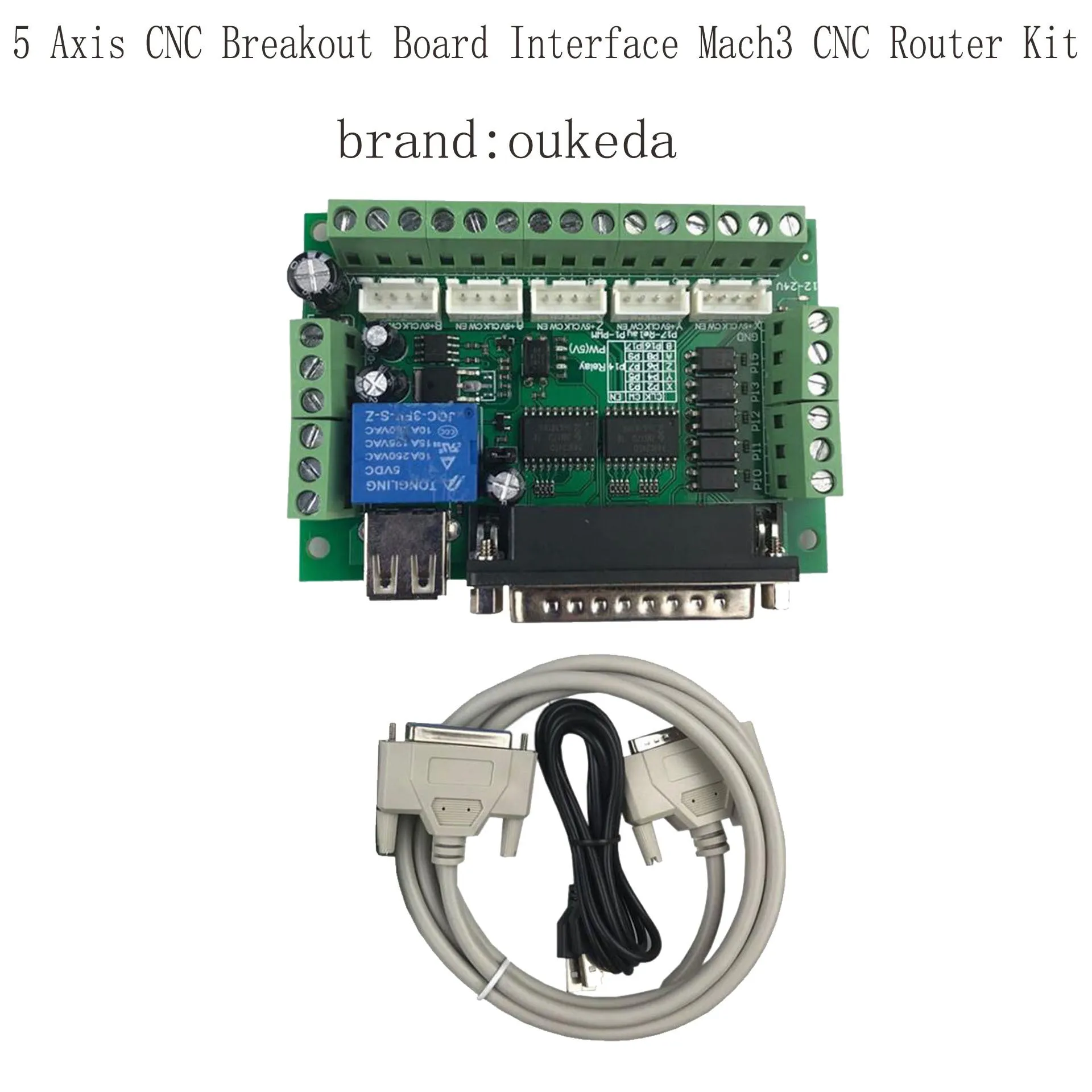

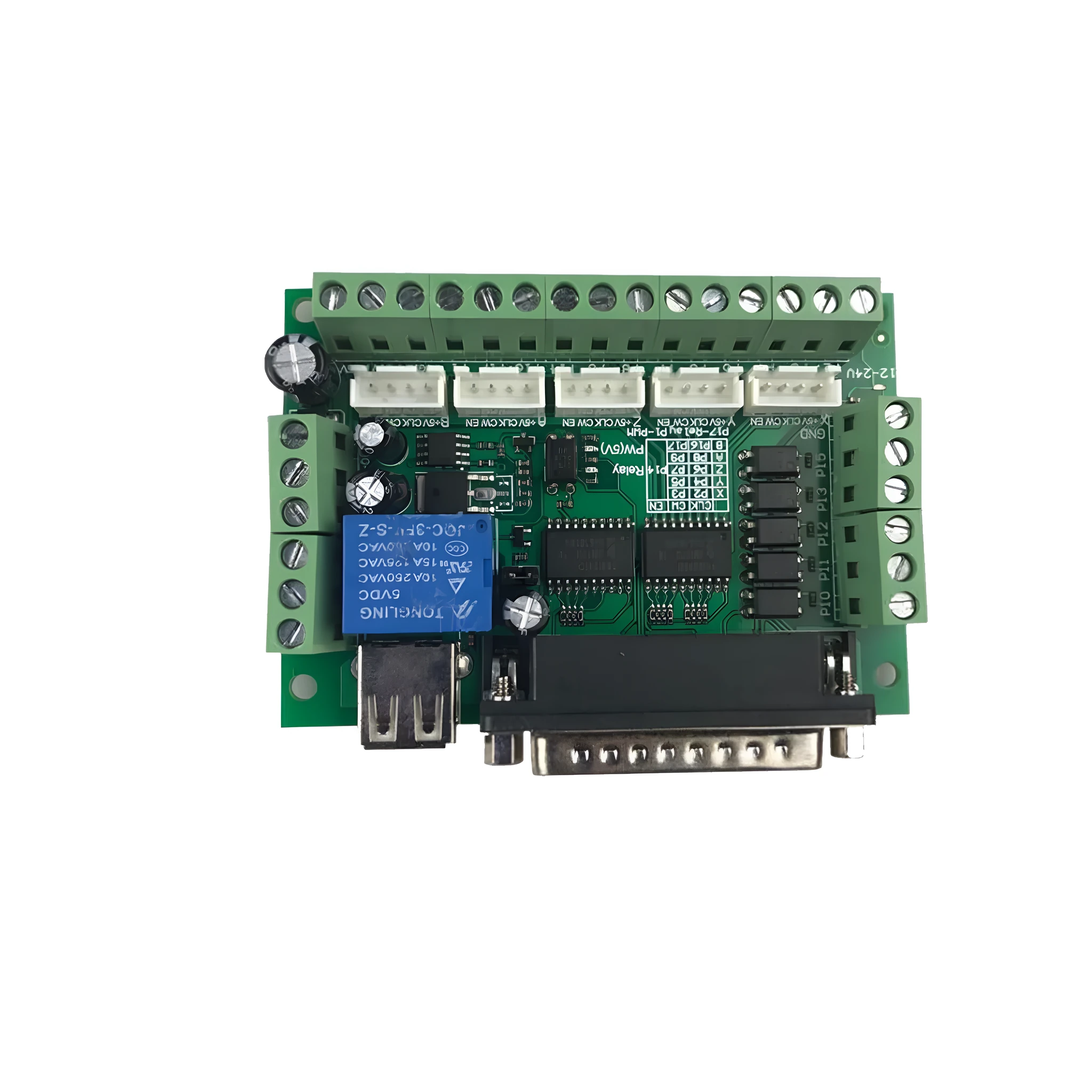

5 Axis CNC Breakout Board for Mach3 Router with Opto-Isolated Signal Protection

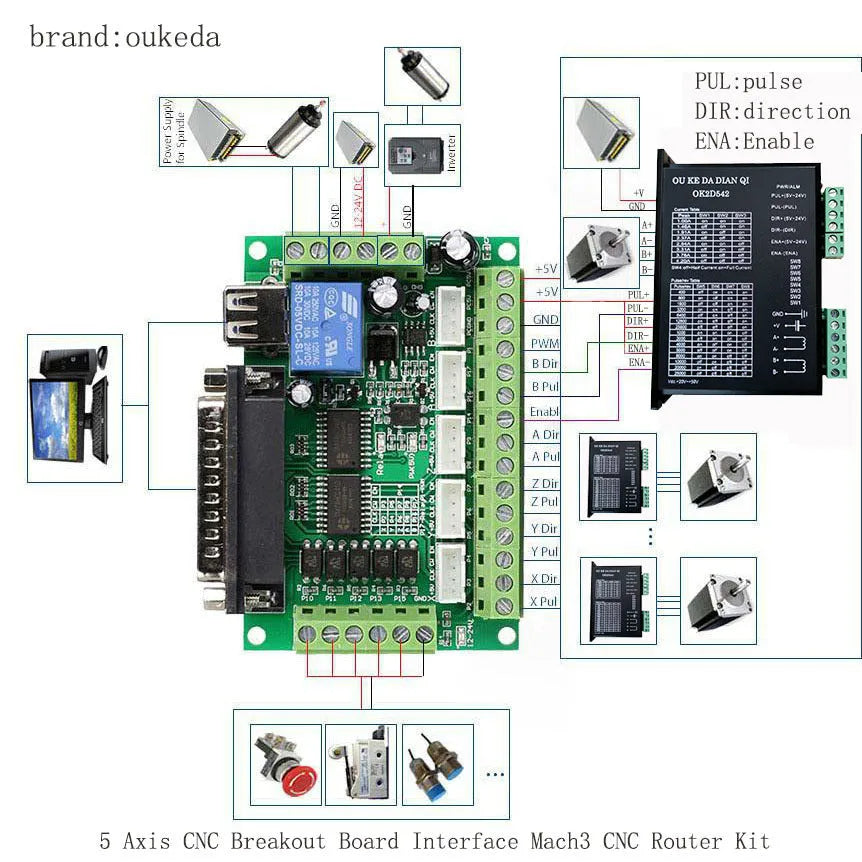

This breakout board is designed to interface your computer with up to five stepper motor drivers, making it a central component for CNC router and milling machine control. It works with popular software including Mach3 and Linux CNC (EMC2), and features opto-isolated inputs and outputs to safeguard your computer from electrical surges. With a separate USB power supply for the control side and a wide 12-24V input for the driver side, it offers practical protection for both your PC and the machine.

Features and Construction

This board integrates multiple functions needed for reliable CNC operation, including relay control and spindle speed output. Its construction focuses on safety and compatibility with common hardware.

Signal Isolation and Safety

All signals on the board are opto-isolated, which means there is no direct electrical connection between the computer and the high-power driver circuits. This design helps prevent damage to your PC from voltage spikes or ground loops, and is a standard safety feature in professional CNC interfaces.

Power Supply Separation

The USB power supply for the control logic is separated from the peripherals power phase (12-24V). This separation ensures that any fault on the driver side does not affect the computer, and the anti-reverse function on the input protects against incorrect polarity connections.

Input and Output Capabilities

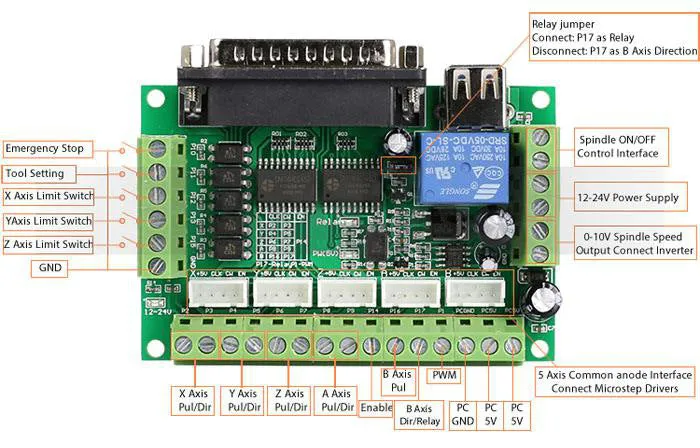

Five input interfaces are provided for Limit switches, Emergency-Stop, and Cutter alignment functions. The board also includes one relay output control interface, which can be used to switch a spindle motor, air pump, or water pump. Additionally, an analog voltage output of 0-10V is available to control inverter-driven spindle speed.

Compatibility and Integration

This breakout board is designed to work with a wide range of common CNC components, making it a straightforward choice for building or upgrading a CNC controller.

Software Compatibility

The board is compatible with Mach3 and Linux CNC (EMC2) parallel-control software. These are two of the most widely used CNC control platforms, so integration with existing setups is straightforward.

Driver Compatibility

The board is compatible with all 2-phase microstep drivers available in the market. This ensures you can use it with a variety of stepper motor drives without needing additional adapters.

Voltage and Power

The input voltage range of 12-24V DC covers the common power supplies used for CNC driver systems. The anti-reverse function protects the board if the power wires are accidentally swapped, adding reliability during installation.

Uses and Placement

This breakout board is suitable for both hobbyist and small workshop CNC machines where a reliable, cost-effective interface is required.

CNC Router and Milling Machines

It can be used in 3-axis, 4-axis, or 5-axis CNC routers for wood, plastic, or soft metal machining. The five axes allow for complex 3D carving and multi-sided workpieces.

Retrofit and Upgrade Projects

For those upgrading an existing machine from a parallel port directly to a PC, this board adds much-needed isolation and a clean interface. It is also suitable for building a new controller from scratch.

Automation and Additional Equipment Control

The relay output can control auxiliary equipment such as coolant pumps or dust collection, and the analog output provides spindle speed control for variable-frequency drives.

Benefits and Buying Value

This breakout board offers practical advantages for safe and flexible CNC control at a reasonable cost point.

Computer Protection

Opto-isolation and separated power supplies mean your computer is less likely to be damaged by electrical noise or faults on the machine side. This is a key feature for anyone using a standard PC as their CNC controller.

Ease of Setup

With clear input/output designations and compatibility with common software and drivers, the board can be wired up without specialist electronics knowledge. The 12-24V input range also makes power supply selection easy.

Why Choose This Product

If you need a 5-axis interface with safety isolation, spindle speed control, and relay outputs, this board delivers these features in a single, affordable package. It is a practical choice for both new builds and upgrades where reliable signal integrity is important.
